Automatic Temperature Control Steam Free Ironing Machine 100mm/S

Product Details:

Place of Origin:	China
Brand Name:	DRESSED SANTO
Certification:	CE ISO
Model Number:	XST-258-8K

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$5800-$8500
Packaging Details:	Export wooden box packaging
Delivery Time:	20 work days
Payment Terms:	T/T,L/C
Supply Ability:	500 sets per month

Contact Now Chat Now

Detailed Product Description

Ironing Speed:	100mm/s	Color:	White
Press Type:	Automatic Temperature Control	Steam Need:	No Need Steam
Industrial Pressing Table:	No Need Industrial Pressing Table	Steam Boiler:	No Need Steam Boiler
Highlight:	automatic temperature control steam free iron , steam free ironing machine 100mm/s , steam free iron with temperature control

Automatic Temperature Control Wide Interlining Strip Industrial Steam Free Ironing Machine

Product Brief

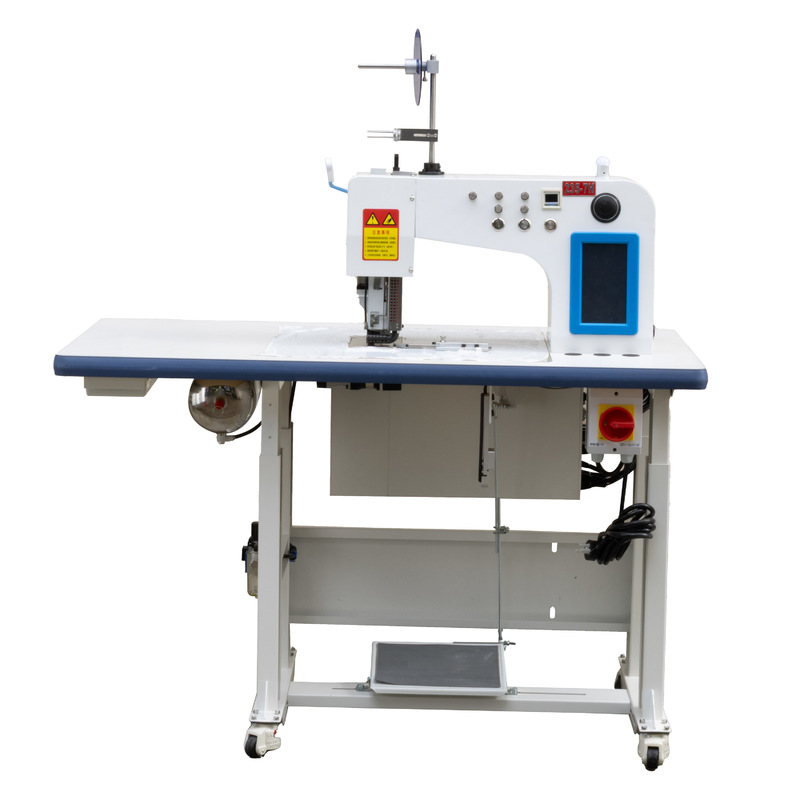

The XST-258-8K is an intelligent steam-free garment interlining ironing machine specifically designed for interlinings with a width of 2cm to 6cm. This equipment adopts the world's pioneering steam-free intelligent temperature-controlled ironing technology independently developed by our company.

Key Features

Intelligent Wide-Width Ironing: Optimized for 2-6cm interlinings with steam-free directional heating to prevent adhesive seepage and fabric damage
Dual Servo Motor Synchronous Feeding: Coordinated control ensures stable material conveyance for continuous production
Adaptive Fabric System: Automatically identifies fabric types and adjusts temperature parameters
Automatic Material Cutting: Enables automatic cutting without manual intervention
Integrated Design: Replaces multiple traditional equipment pieces with a single machine

Product Advantages

Superior Quality: Eliminates interlining skewing, warping, and rebound for firm bonding
Energy Efficiency: Consumes only 300W (1/10 of traditional equipment) with rapid 30-second heating
Continuous Production: Automatic feeding and cutting improves efficiency and consistency
User-Friendly: Simple interface allows proficiency within 3 minutes
High Compatibility: Works with various fabric types while protecting from damage

Technical Specifications

Model	XST-258-8K
Pressing Speed	100 mm/s (adjustable)
Pressing Width	20-60 mm
Pressing Stroke	Continuous
Feeding Method	Top/bottom dual feeding
Temperature Range	150-350°C (adjustable by fabric type)
Working Pressure	0.45-0.7 MPa
Motor Power	100W + 100W (dual motor)
Motor Speed	986 r/min
Power Supply	AC 220V ±10%, 50/60 Hz
Patent	ZL 2024 2 1680734.4 (Automatic Feeding and Pressing Device)

Applications

This device is specifically developed for men's and women's clothing production, including suits, uniforms, evening wear, trench coats, leather garments, denim jackets, workwear, and formal attire. It supports efficient wide-hem pressing, improves shaping accuracy, enhances seam consistency, and reduces process errors.
