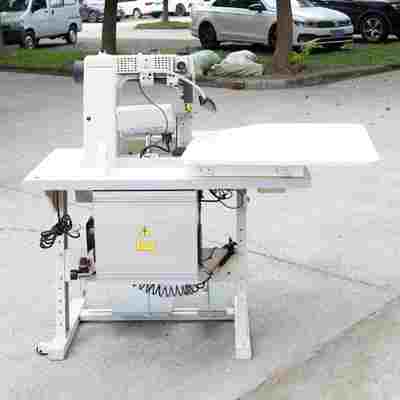

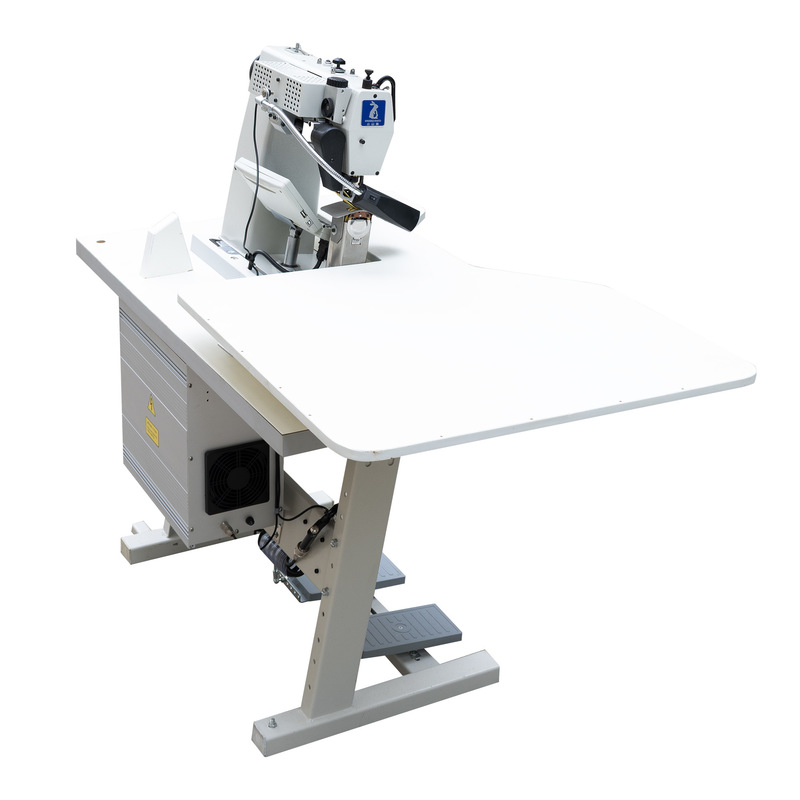

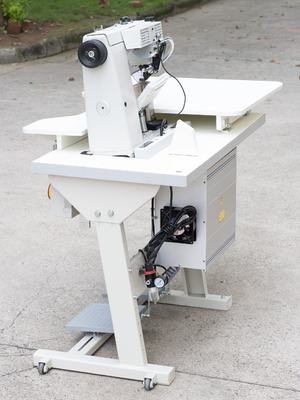

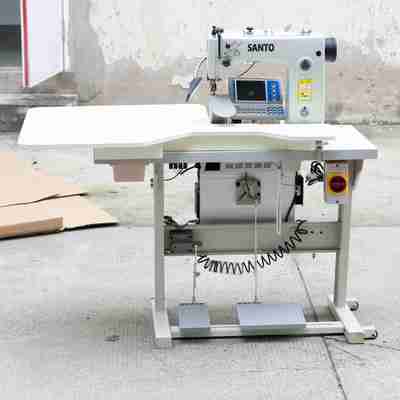

Semi Automatic Sleeve Setting Machine 750W Double Motor 9-16 Needle

Product Details:

Brand Name:	Dressed Santo
Certification:	CE ISO
Model Number:	XST-550A /550DD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Email For Price
Packaging Details:	Wooden Case
Delivery Time:	20 Work Days
Payment Terms:	T/T,L/C
Supply Ability:	500 Sets Per Month

Contact Now Chat Now

Detailed Product Description

Feeding Method:	Single-motor Feeding Or Or Double Motor Feeding	Product Type:	Sleeve Setting Machine
Automation Level:	Semi-automatic	Ease Value:	Adjustable, Supports Segmented Ease Value Setting And Temporary Addition/reduction
Stitch Length:	1.5-5.5mm	Machine Type:	Flatbed Industrial Sewing Machine
Presser Foot Pressure Adjustment:	Adapts To The Thickness Of Different Fabrics To Prevent Fabric Stretching Or Damage	Motor:	Single Or Double Motor
Highlight:	semi automatic sleeve setting machine , 16 Needle sleeve setting machine , 9 Needle sleeve setting machine

Semi-automatic Sleeve Setting Machine with Double Motor 134-35DPX35 9-16 Needle Specifications

Product Description

The Sleeve Setting Machine is a specialized sewing equipment designed for precise sleeve attachment in garment production. It efficiently joins sleeves to garment bodies while automatically creating even, natural gathers for superior fit and comfort.

This equipment enhances armhole construction while adding three-dimensional shaping and distinctive craftsmanship. Suitable for suits, overcoats, casual wear, and children's clothing, it delivers consistent quality from high-end customization to mass production.

Key Features

High-Speed Precision: 4000 stitches per minute motor with optical sensor/mechanical baffle alignment ensures perfect sleeve cap to armhole matching

Programmable Operation: Color LCD keypad for digital parameter settings and program storage for various styles and sizes

Advanced Stitch Control: Double-thread lockstitching with adjustable presser foot pressure for all fabric weights

Professional Curve Guidance: Unique armhole curve guide with adjustable wrinkle value for precise sleeve positioning

Robust Power System: 750W motor (single or dual) with optional German EFKA components for reliable performance

Ergonomic Design: Cylindrical base for easy operation, suitable for suits, shirts, jackets, and sportswear

Technical Specifications

Model	XST-560A /560DD
Motor Power	750W
Motor Configuration	Single or Double Motor
Programming	Stores sewing programs for multiple styles/sizes
Oil Feeding	Spindle Oil Feeding
Threads	Double Threads
Needle Bar Stroke	41mm
Needle Specifications	134-35DPX35 9#-16#
Power Source	220V 50Hz

Applications

This sleeve setting machine offers manufacturers adjustable ease value settings and durable double-thread lockstitching for secure sleeve attachment. Ideal for coat production and various apparel requiring precise sleeve construction.
