Sleeve Setting Machine XST-560A With 750W Motor And 8mm Presser Foot Lift

Product Details:

Brand Name:	Dressed Santo
Certification:	CE ISO
Model Number:	XST-550A /550DD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Email For Price
Packaging Details:	Wooden Case
Delivery Time:	20 Work Days
Payment Terms:	T/T,L/C
Supply Ability:	500 Sets Per Month

Contact Now Chat Now

Detailed Product Description

Sewing Type:	Specifically Designed For Armhole Joining Seams.	LCD Key Color Screen:	Used For Setting And Adjusting Sewing Parameters (stitch Length, Tension, Speed, Etc.).
Feeding Method:	Single-motor Feeding Or Or Double Motor Feeding	Presser Foot Pressure Adjustment:	Adapts To The Thickness Of Different Fabrics To Prevent Fabric Stretching Or Damage
Ease Value:	Adjustable, Supports Segmented Ease Value Setting And Temporary Addition/reduction	Needle Bar Stroke:	41mm
Armhole Curve:	Guided Function To Ensure No Deviation	Presser Foot Lift:	8mm Maximum
Highlight:	sleeve setting machine 750W , 8mm sleeve setting machine , sleeve setting machine industrial

Applicable Fabrics And Various Other Fabrics XST-560A/560DD Sleeve Setting Machine

Product Description

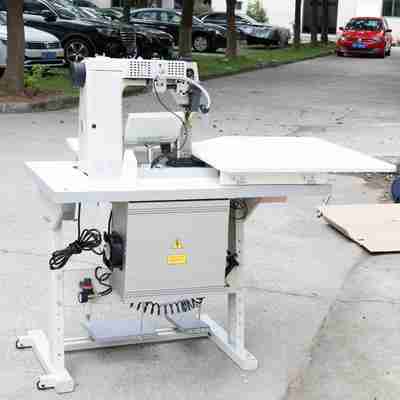

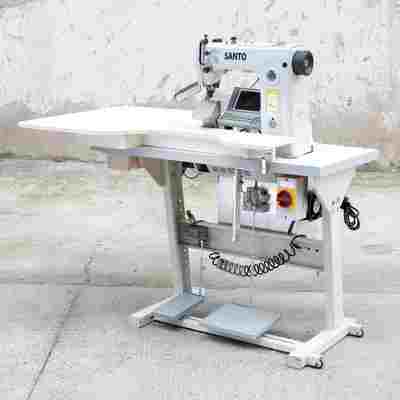

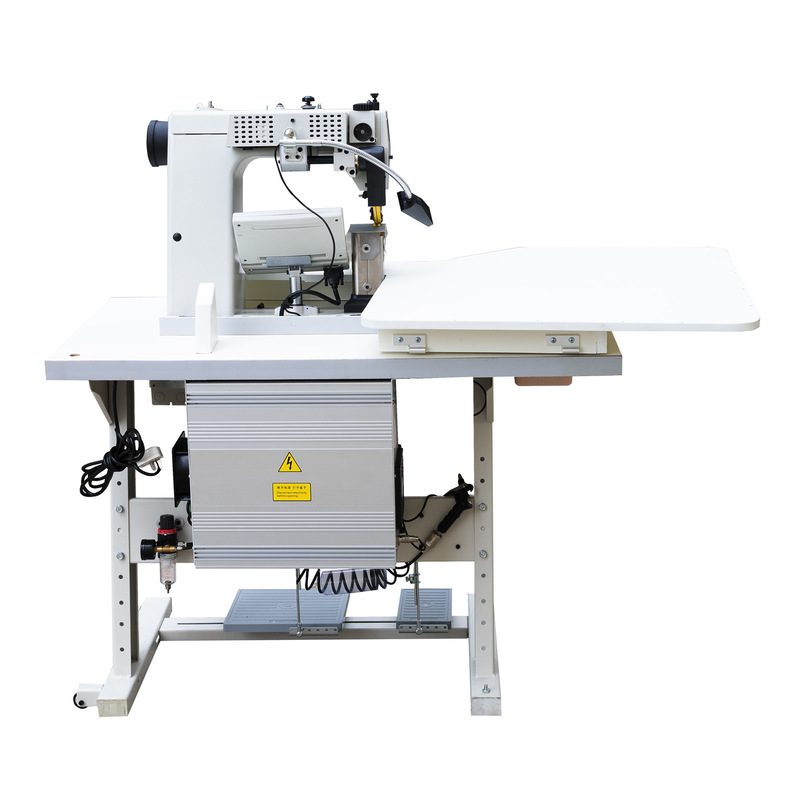

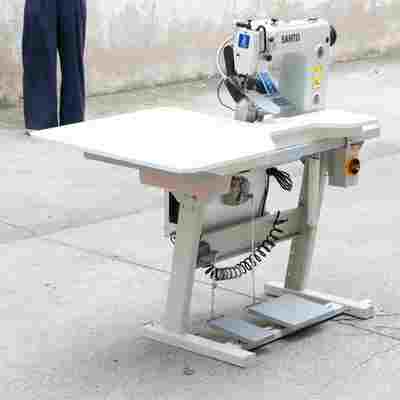

The Sleeve Setting Machine is a specialized sewing equipment designed for the sleeve attachment process in garment production. It efficiently completes the precise seaming of the sleeve to the body while automatically imparting an even and natural gathering effect.

This equipment enhances both the fit and comfort of the armhole while adding three-dimensional shape and distinctive craftsmanship to garments. Suitable for various apparel types including suits, overcoats, casual wear, and children's clothing, it enables consistent, high-quality results from custom tailoring to mass production.

Key Features

Efficient and Precise Sewing: 4000 stitches per minute high-speed motor with optical sensor/mechanical baffle alignment system ensures precise sleeve cap and armhole alignment
Intelligent Programmable Operation: Color LCD keypad for digital parameter setting (stitch, tension, speed) with program storage for various styles and sizes
Excellent Stitch Control: Double-thread lockstitching with adjustable presser foot pressure for fabrics ranging from lightweight to heavyweight wovens and knits
Professional Curve Guide: Unique armhole curve guide function with adjustable wrinkle value settings for precise sleeve cap positioning
Stable Power System: 750W high-power single or dual motor options with domestic or German EFKA brand components available
Ergonomic Design: Cylindrical base for easy operation with wide applicability across garment types including suits, shirts, jackets, and sportswear

Technical Specifications

Number of Needles	Single Needle
Applicable Fabrics	Woven, Knitted, And Various Other Fabrics
Oil Feeding	Spindle Oil Feeding
Sewing Type	Specifically Designed For Armhole Joining Seams
Number of Threads	Double Threads
Needle Specifications	134-35DPX35 9#-16#
Automation Level	Semi-automatic
Presser Foot Lift	8mm Maximum
Motor	Single Or Double Motor
Armhole Curve	Guided Function To Ensure No Deviation

Applications

Shirt Sleeve Setting: Perfect for attaching sleeves to shirts with guided armhole curve function for perfect alignment
Coat Sleeve Attachment: Ideal for coat manufacturing with precise alignment system using optical sensors or mechanical stops
Versatile Garment Production: Suitable for garment industry, textile production, and tailoring businesses across multiple product types
