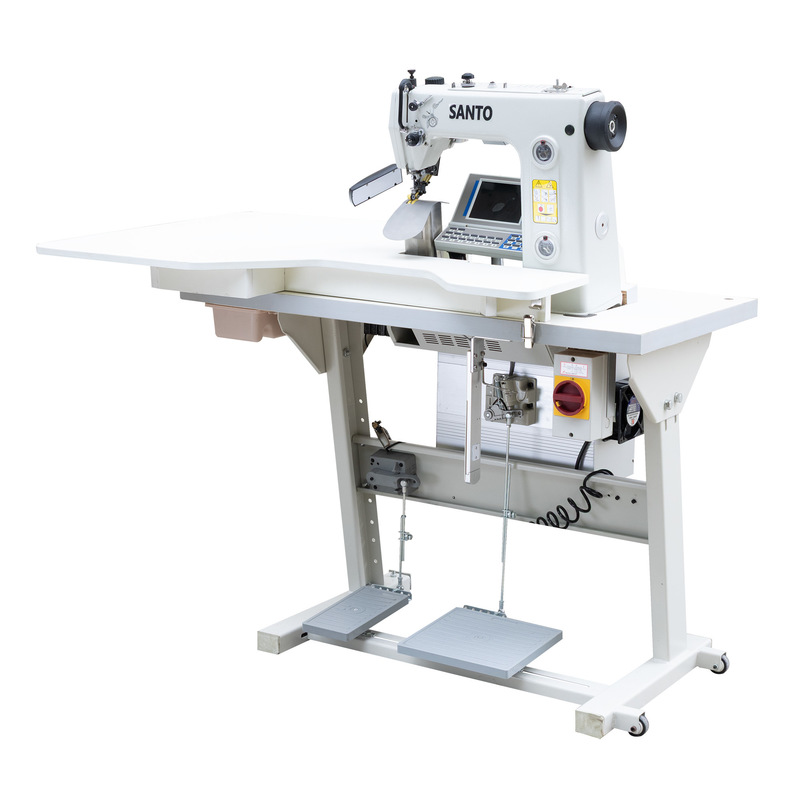

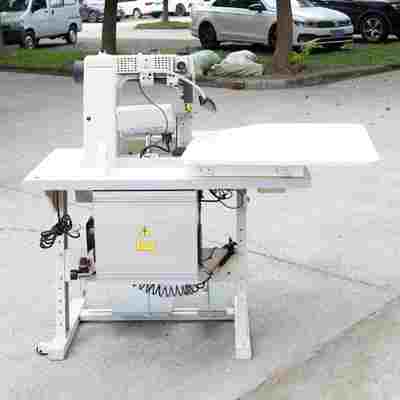

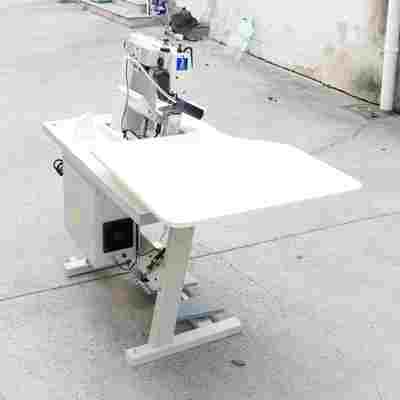

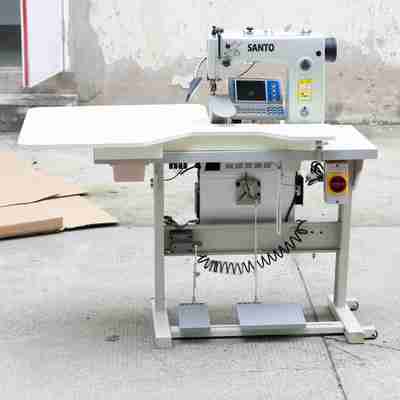

Semi Automatic Sleeve Setting Machine 750W Motor For Armhole Seams

Product Details:

Brand Name:	Dressed Santo
Certification:	CE ISO
Model Number:	XST-550A /550DD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Email For Price
Packaging Details:	Wooden Case
Delivery Time:	20 Work Days
Payment Terms:	T/T,L/C
Supply Ability:	500 Sets Per Month

Contact Now Chat Now

Detailed Product Description

Programming Capability:	Can Store Sewing Programs For Multiple Styles And Sizes, Allowing Quick Switching.	Sewing Type:	Specifically Designed For Armhole Joining Seams.
Usage:	Sleeve Setting	Presser Foot Lift:	8mm Maximum
Motor Power:	750W	Stitch Length:	1.5-5.5mm
Number Of Threads:	Double Threads	Mode:	XST-560A /560DD
Highlight:	Sleeve Setting Machine Double Threads , Armhole Seams Sleeve Setting Machine , 5.5mm sleeve setting machine

Semi-automatic Sleeve Setting Machine for Armhole Joining Seams

Specifically designed for shirt production, this specialized sewing equipment efficiently attaches sleeves to garment bodies while automatically creating an even gathering effect.

Product Overview

The Sleeve Setting Machine enhances garment fit and comfort while adding three-dimensional shaping to armholes. Its versatile design accommodates suits, overcoats, casual wear, and children's clothing, making it ideal for both high-end customization and mass production.

Key Features

High-Speed Precision Sewing 4000 stitches per minute motor with optical/mechanical alignment ensures perfect sleeve cap positioning and consistent armhole stitching.
Programmable Operation Color LCD keypad allows digital setting of stitch parameters with storage for 100 sewing patterns, enabling quick changeovers between styles.
Advanced Stitch Control Double-thread lockstitching with adjustable presser foot pressure accommodates fabrics from lightweight knits to heavy wovens without stretching or damage.
Professional Curve Guidance Unique armhole curve guide with adjustable wrinkle technology achieves precise three-dimensional shaping for premium garments.
Robust Power System 750W motor (single or dual configuration) with optional German EFKA components delivers reliable performance.
Ergonomic Design Cylindrical base facilitates easy operation across diverse apparel including shirts, jackets, and sportswear.

Technical Specifications

Parameter	Specification
Presser Foot Lift	8mm Maximum
Motor Configuration	Single or Double Motor
Stitch Type	Double-thread Lockstitch
Automation Level	Semi-automatic
Stitch Length Range	1.5-5.5mm
Motor Power	750W
Needle Specifications	134-35DPX35 9#-16#
Pattern Storage	100 Sewing Patterns
Oil Feeding System	Spindle Oil Feeding

Applications

The XST-550A/550DD Semi-automatic Sleeve Setting Machine (CE/ISO certified) is engineered for attaching sleeves to diverse garments including suits, shirts, jackets, T-shirts, and sportswear. Its precision stitching ensures professional finishes across all apparel types.
