XST-560DD Dual Motor Sleeve Setting Machine With 4000 Stitches/Min

Product Details:

Place of Origin:	China
Brand Name:	Dressed Santo
Certification:	CE/ISO
Model Number:	XST-560DD

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Email for Price
Packaging Details:	Wooden Case
Delivery Time:	7-14 Workdays
Payment Terms:	L/C,T/T
Supply Ability:	300 Sets/ Month

Contact Now Chat Now

Detailed Product Description

Motor:	Double Motor	Motor Brand:	Made In China
Feed System:	Most Modern Machines Use A Differential Feed System Or A Walking Foot (Unison Feed) System To Handle Multiple Layers Of Fabric Without Shifting Or Stretching.	Drive System:	Dual Independent Motors—one For The Needle And One For The Feed—allowing For Incredibly Precise Control Over Stitching And Fabric Movement.
Stitch Type:	Typically A 504 (overlock) Or 515 (safety Stitch).	Control System:	Programmable Computerized Control For Storing Settings For Different Garments.
Highlight:	4000 Stitches/Min Sleeve Setting Machine , Dual Motor Sleeve Setting Machine , 5.5mm Sleeve Setting Machine

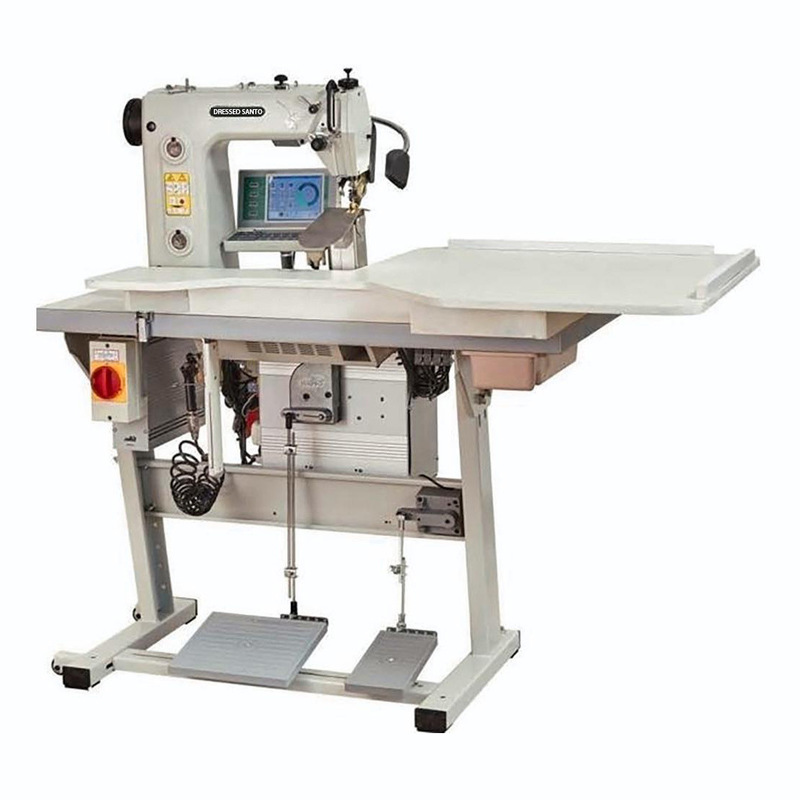

XST-560DD Dual Motor Feeding Computerized Control Sleeve Setting Machine

Product Overview

The Sleeve Setting Machine is a specialized sewing equipment designed for sleeve attachment in garment production. It precisely seams sleeves to garment bodies while automatically creating an even gathering effect. This enhances armhole fit and comfort while adding three-dimensional shaping and distinctive craftsmanship. Suitable for suits, overcoats, casual wear, and children's clothing, it delivers consistent quality from high-end customization to mass production.

Key Features

Dual-core Power Feed: Dual motors provide exceptional feeding force and stability, handling diverse fabrics efficiently.
Colorful Smart Display: Graphical interface simplifies parameter settings and enhances sewing experience.
Intelligent Curve Navigation: Built-in trajectory guidance enables precise sewing of complex armhole curves with minimal skill requirements.
Personalized Wrinkle Settings: Program different wrinkle effects by section with one-click switching for diverse designs.
Real-time Wrinkle Adjustment: Make on-the-fly adjustments for immediate creative implementation.

Product Parameters

Model	XST-HT-560DD
Sewing speed	4000 stitches/min
Max lift of the presser foot	8mm
Thread number	2
Needle	134-35DPX35 9#-16#
Needle bar stroke	41mm
Lock stitch	1.5-5.5mm
Oi feeding	Spindle
Storage number of sewing patterns	100
Air pressure	0.5Mpa
Motor power	0.75KW
Voltage	AC 220V±10%；50/60Hz

Application

Specialized sewing equipment for sleeve attachment in garment production, suitable for suits, coats, casual wear, children's wear, and other apparel types.
